Hi Jong Woo,
Ø
I found that I have multiple cameras and while I was monitoring streaming images with another camera (look at the followings. it is upper half) using matlab GUI, the array rate was too bad.
Ø
But as soon as I stopped it, it jumped to the level I expected.
Ø
Do I need to avoid using both cameras simultaneously? because it is a kind of limit of data transfer, right?
If you are running 2 GigE cameras that share a single GigE network connection to your PC then you cannot run both cameras at their full rate. That will exceed the GigE bandwidth limit.

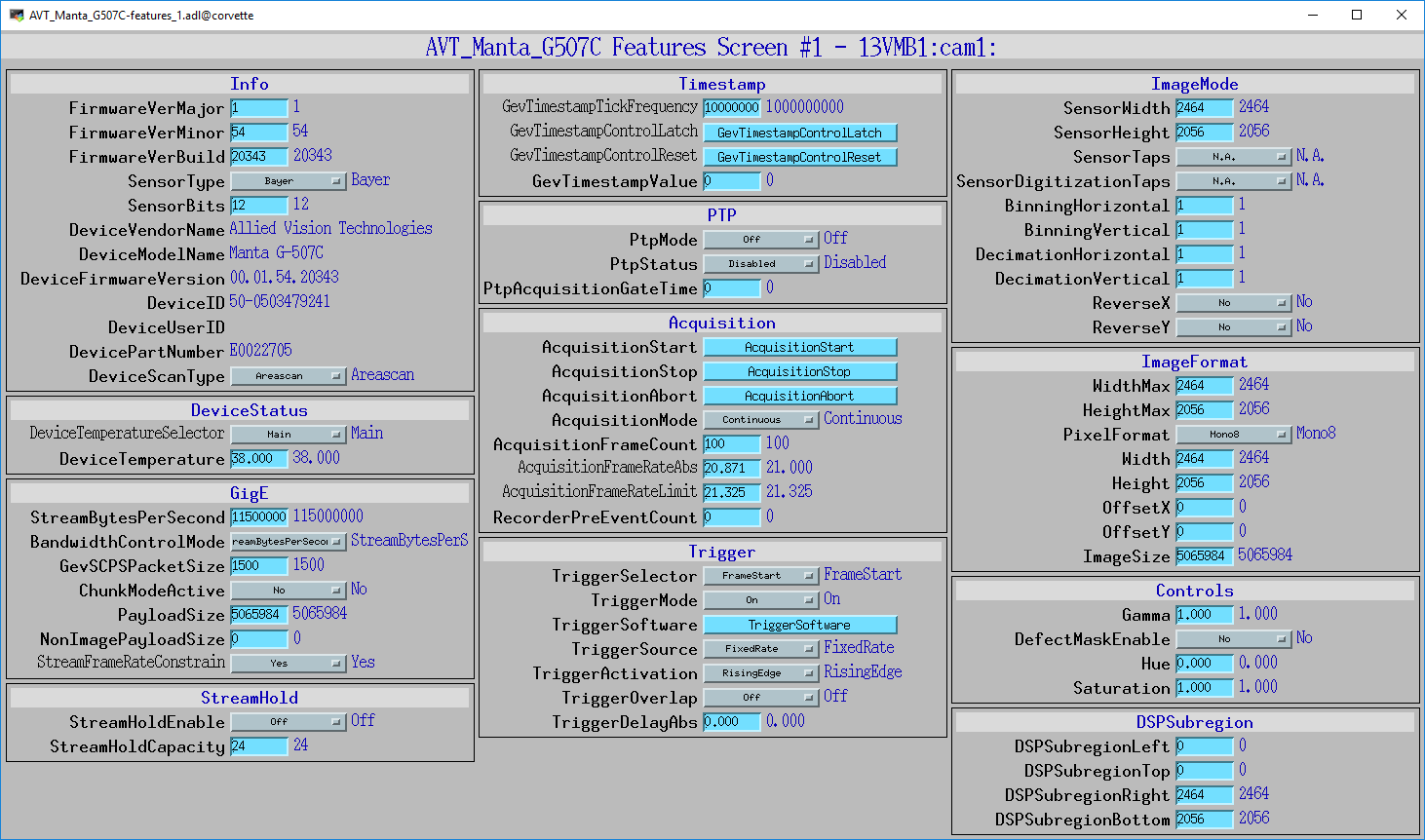

You can use the screen below to control how much bandwidth each camera is allowed to use, in the StreamBytesPerSecond PV.
In the screen shot above it is set to 115,000,000. With that setting I can run the camera at its full rate of 21 frames/s. If I reduce that value to 60,000,000 then the camera automatically changes the maximum frame rate from 21 frames/s
to 11 frames/s. You can do that on the other camera as well. If you do that then you should be able to run both cameras with a predictable frame rate, but one that is less than the maximum that each camera alone can run.
Mark
From: Jong Woo Kim <Jong.Woo.Kim at asu.edu>
Sent: Tuesday, October 6, 2020 11:48 AM
To: Mark Rivers <rivers at cars.uchicago.edu>
Subject: Re: Inconsistency of image rate in ADVimba
I found that I have multiple cameras and while I was monitoring streaming images with another camera (look at the followings. it is upper half) using matlab GUI, the array rate
was too bad. But as soon as I stopped it, it jumped to the level I expected. Do I need to avoid using both cameras simultaneously? because it is a kind of limit of data transfer, right?
[jkim617@localhost ~]$ camonitor 13VMB1:cam1:ArrayRate_RBV
13VMB1:cam1:ArrayRate_RBV 2020-10-06 12:19:10.434605 0
13VMB1:cam1:ArrayRate_RBV 2020-10-06 12:19:35.434525 1
13VMB1:cam1:ArrayRate_RBV 2020-10-06 12:19:36.434558 6
13VMB1:cam1:ArrayRate_RBV 2020-10-06 12:19:37.434523 3
13VMB1:cam1:ArrayRate_RBV 2020-10-06 12:19:38.434525 7
13VMB1:cam1:ArrayRate_RBV 2020-10-06 12:19:39.434562 3
13VMB1:cam1:ArrayRate_RBV 2020-10-06 12:19:40.434557 6
13VMB1:cam1:ArrayRate_RBV 2020-10-06 12:19:41.434526 7
13VMB1:cam1:ArrayRate_RBV 2020-10-06 12:19:42.434575 3
13VMB1:cam1:ArrayRate_RBV 2020-10-06 12:19:44.434572 2
13VMB1:cam1:ArrayRate_RBV 2020-10-06 12:19:45.434558 5
13VMB1:cam1:ArrayRate_RBV 2020-10-06 12:19:46.434592 22
13VMB1:cam1:ArrayRate_RBV 2020-10-06 12:19:48.434561 21
13VMB1:cam1:ArrayRate_RBV 2020-10-06 12:19:50.434528 22
13VMB1:cam1:ArrayRate_RBV 2020-10-06 12:19:51.434527 21
13VMB1:cam1:ArrayRate_RBV 2020-10-06 12:19:53.434550 22
13VMB1:cam1:ArrayRate_RBV 2020-10-06 12:19:54.434563 21
13VMB1:cam1:ArrayRate_RBV 2020-10-06 12:19:56.434524 22
13VMB1:cam1:ArrayRate_RBV 2020-10-06 12:19:57.434592 21
13VMB1:cam1:ArrayRate_RBV 2020-10-06 12:19:59.434525 22
13VMB1:cam1:ArrayRate_RBV 2020-10-06 12:20:00.434562 21
13VMB1:cam1:ArrayRate_RBV 2020-10-06 12:20:02.434529 22
13VMB1:cam1:ArrayRate_RBV 2020-10-06 12:20:03.434528 21
Thank you so much for your feedback! I’ll try and keep you posted.
The first problem I see is that you are converting the image from Mono8 to Mono16. That does not make sense. You should set ConvertImageFormat to None.
Please also update to the ADVimda R1-3. It fixes a number of problems and provides good statistics in the upper right corner of that display.
Mark
________________________________
From: Jong Woo Kim <Jong.Woo.Kim at asu.edu>
Sent: Monday, October 5, 2020 6:32 PM
To: Mark Rivers
Subject: Re: Inconsistency of image rate in ADVimba
Hi Mark,
I attached a screenshot. The operating system is Linux (Centos 7) The version of ADGenICam and ADVimba are on the medm window. If I use "FixedRate" as a Trigger Source, Image rate is '0'. So, I used 'FreeRun'.
The error on the IOC console is as follows.
The answer to the question that another Mark asked is that it is public not a private network and the packet size is 1500. If I missed any info., let me know.
______________________________________________
2020/10/05 19:15:25.126 ADVimba::processFrame error GetReceiveStatus returned 0 frameStatus=-1
10-05-2020 19:15:25.127 [T] Trashed frame! 295,325 0
2020/10/05 19:15:25.127 ADVimba::processFrame error GetReceiveStatus returned 0 frameStatus=-1
10-05-2020 19:15:25.129 [T] Trashed frame! 296,345 0
2020/10/05 19:15:25.129 ADVimba::processFrame error GetReceiveStatus returned 0 frameStatus=-1
10-05-2020 19:15:25.130 [T] Trashed frame! 297,340 0
2020/10/05 19:15:25.130 ADVimba::processFrame error GetReceiveStatus returned 0 frameStatus=-1
10-05-2020 19:15:25.132 [T] Trashed frame! 298,330 0
2020/10/05 19:15:25.132 ADVimba::processFrame error GetReceiveStatus returned 0 frameStatus=-1
2020/10/05 19:15:25.250 ADVimba::processFrame error GetReceiveStatus returned 0 frameStatus=-1
2020/10/05 19:15:25.250 ADVimba::processFrame error calling VmbImageTransform, input pixel format=0x1080001, pixelLayout=0, status return=-17
2020/10/05 19:15:25.250 ADVimba::processFrame error calling VmbImageTransform, input pixel format=0x1080001, output pixel format=0x1100007 status return=-7
Best,
Jong Woo
________________________________
From: Mark Rivers <rivers at cars.uchicago.edu>
Sent: Monday, October 5, 2020 2:11 PM
To: Jong Woo Kim <Jong.Woo.Kim at asu.edu>
Cc: tech-talk at aps.anl.gov <tech-talk at aps.anl.gov>
Subject: RE: Inconsistency of image rate in ADVimba
Hi Jong Woo,
Ø When I set the Frame rate to be 10 and ROI to be 2464x2056 (full image size), The image rate is sometimes 22 or 2 or 8. There is also no tendency with ROI. The camera is Mako
You need to provide some more information.
- What operating system are you using, Linux or Windows?
- What version of ADGenICam and ADVimba?
- What is the value of TriggerMode and TriggerSource?
- Are there any errors on the IOC console?
The easiest way to answer these questions is to attach a screen shot. Here is a screen shot from ADVimba running my Manta G-507C, which is the same size as your Mako (2464 x 2056). I am running it at the maximum specified frame rate of 21 frames/s. The frame
rate is very constant at 21 frames/s.
[cid:[email protected]]
Here is the output of camonitor on the frame rate PV (ArrayRate_RBV), labeled Image rate” on the screen.
corvette:Data/gpd_user/data> camonitor 13VMB1:cam1:ArrayRate_RBV
13VMB1:cam1:ArrayRate_RBV 2020-10-05 15:54:40.274092 21
13VMB1:cam1:ArrayRate_RBV 2020-10-05 15:59:12.274337 2
13VMB1:cam1:ArrayRate_RBV 2020-10-05 15:59:13.274473 0
I started camonitor 13 15:54 and the rate was 21. I stopped the camera at 15:59, almost 5 minutes later, so the rate went to 0. During those 5 minutes the value was 21, and never changed at all.
So this shows that ADVimba can run this camera at its maximum specified frame rate continuously with no variation.
If you are not getting this performance then we need to figure out if it is because you have set some PV incorrectly or if there is some other reason.
I recommend that you run the latest version of ADVimba, R1-3.. It provides very useful statistics in the upper-right part of this screen. Note that in my case there are no packet error or frame errors. It is important to see if you do have packet errors
or frame errors.
Mark
From: Tech-talk <tech-talk-bounces at aps.anl.gov> On Behalf Of Jong Woo Kim via Tech-talk
Sent: Monday, October 5, 2020 3:32 PM
To: tech-talk at aps.anl.gov
Subject: Inconsistency of image rate in ADVimba
Hi,
I found that the Image rate (PV:13VMB1:cam1:ArrayRate_RBV) varies randomly.
When I set the Frame rate to be 10 and ROI to be 2464x2056 (full image size), The image rate is sometimes 22 or 2 or 8. There is also no tendency with ROI. The camera is Mako. Do you have any idea about this issue?
Best,
Jong Woo
|
