I am trying to make sure I understand how the CA Gateway networking setup works for running all pieces on the same PC(VM).  Below is my ENV variables list that I setup, I am just using the basic access list and pv list examples (although I did have a question about the access/pvlist)



export EPICS_CA_AUTO_ADDR_LIST=NO

export EPICS_CA_ADDR_LIST=localhost

export EPICS_CA_MAX_ARRAY_BYTES=800000

export EPICS_CAS_INTF_ADDR_LIST=localhost

export EPICS_CA_SERVER_PORT=5064

export EPICS_CAS_SERVER_PORT=5065

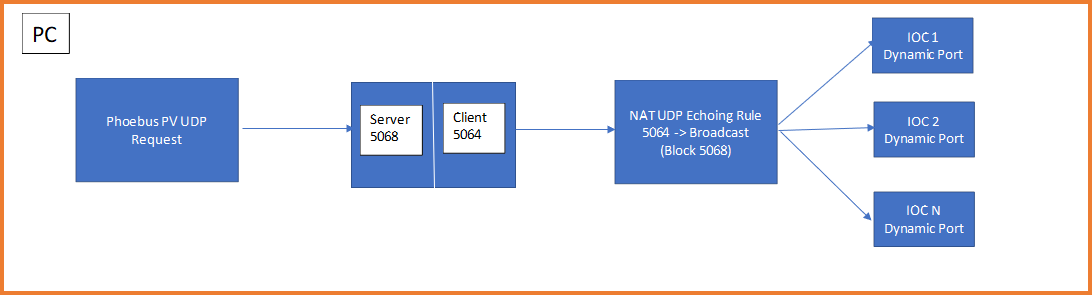

My understanding is that the CAS port is listening for requests from a client (in this case Phoebus).  I also am running Ralphs script to handle multiple IOCs on the same PC so UDP packets sent to 5064 are being echoed out on all ports (I think I need to block whichever port the CAS Server Port in this NAT Rule to stop looping).  Below is how I think the setup is supposed to work but I am unsure as I havnt been successful yet.





































Access/PV List files question:



I am using the example files and for the access file the DEFAULT is where all requests go that aren’t listed as UAG or HAG?



ASG(DEFAULT) {

   RULE(1,READ)

}



For the Pvlist, the first 3 regex is this covering any PV name basically?  Does the next regex like Beam:.* then subset out from All to only Allowing the Beam 1 user to access these particular ones?



EVALUATION ORDER ALLOW, DENY



[0-9].*          ALLOW

[a-z].*          ALLOW

[A-Z].*          ALLOW



Beam:.*          ALLOW Beam 1

PS.*             ALLOW PowerSupply 1

gateway:.*Flag   ALLOW GatewayAdmin

test.*           DENY

ps\([0-9]\)      ALIAS PSCurrent\1.ai PowerSupply 1
