the scan ran, $(P)$(R)PID value increased, but $(P)$(OUT) wasn't changed. Seems $(P)$(R)PID was not processed.

The fact that OUT did not change does not necessarily mean that the record did not process. Other possibilities include:
- Feedback is turned off
- The PID coefficients are such that OUT does not change
- The OUT field is being limited by DRVL or DRVH

You can set the TPRO field in the epid record to see if it is processing.

Mark


Sent from my iPhone

On Aug 4, 2021, at 10:17 PM, Li, Ji <liji at bnl.gov> wrote:


Hi Mark, Michael,

The test scan with the following definition of related records turned out that, the scan ran, $(P)$(R)PID value increased, but $(P)$(OUT) wasn't changed. Seems $(P)$(R)PID was not processed.

-----------------------------------------------------
grecord(sscan,"$(P)$(R)RampScan") {
        field(DESC,"Load ramp")
        field(PINI,"YES")
        field(PRIO,"HIGH")
        field(MPTS,"1000")
        field(NPTS,"1000")
        field(FPTS,"FREEZE")
        field(D01PV,"$(P)$(R)Value")
        field(P1PV,"$(P)$(R)PID.VAL")
}

grecord(epid,"$(P)$(R)PID") {
        field(INP,"$(P)$(R)Value")
        field(OUTL,"$(P)$(OUT) PP NMS")
        field(KP,"$(KP)")
        field(KI,"$(KI)")
        field(KD,"$(KD)")
        field(LOPR,"0")
        field(HOPR,"501")
        field(DRVL,"-100")
        field(DRVH,"100")
        field(PREC,"3")
}
-----------------------------------------------------

Best,

Ji Li


________________________________
From: Tech-talk <tech-talk-bounces at aps.anl.gov> on behalf of Li, Ji via Tech-talk <tech-talk at aps.anl.gov>
Sent: Wednesday, August 4, 2021 20:55
To: Mark Rivers <rivers at cars.uchicago.edu>
Cc: tech-talk at aps.anl.gov <tech-talk at aps.anl.gov>
Subject: Re: How to find out PVs preventing SSCAN from running?

Hi Mark,

This is a legacy IOC inherited from X17B beamline at NSLS. I don't know much about the details yet, but from reading the database, XF:28IDD-CTPress_PID is a epid record that writes to a DAC to controls the pressure on the MAXPD endstation at 28ID. I will ask the beamline scientist to run a test with the current configuration. Thank you.

Best,

Ji Li

________________________________
From: Mark Rivers <rivers at cars.uchicago.edu>
Sent: Wednesday, August 4, 2021 20:25
To: Li, Ji <liji at bnl.gov>
Cc: tech-talk at aps.anl.gov <tech-talk at aps.anl.gov>
Subject: Re: How to find out PVs preventing SSCAN from running?

Hi Ji Li,


I have used the scan record a lot, and I have never put "PP MS" after a PV name, and it always has processed the record with no problem.  For example if the positioner is a D/A converter it writes to the device, if it is a motor .VAL field it moves the motor, etc. without specifying "PP MS".


What type of record is XF:28IDD-CTPress_PID?  Is it an epid record (which the name suggests), or some other type of record?  What does that record do when you write to its VAL field?


Mark



________________________________
From: Li, Ji <liji at bnl.gov>
Sent: Wednesday, August 4, 2021 6:42 PM
To: Mark Rivers
Cc: tech-talk at aps.anl.gov
Subject: Re: How to find out PVs preventing SSCAN from running?

I see. The original definition of P1PV was

----------------------------------------
field(P1PV,"$(P)$(R)PID.VAL PP MS")
----------------------------------------

and it worked in base 3.14.

Now we are running base 7.0.5, and changing P1PV to

----------------------------------------
field(P1PV,"$(P)$(R)PID.VAL")
----------------------------------------

brought P1NV to PV OK and enabled the scan. But $(P)$(R)PID doesn't get processed when written. How to define the PV as PP in such fields in base 7.0.5?

Best,

Ji Li

________________________________
From: Mark Rivers <rivers at cars.uchicago.edu>
Sent: Wednesday, August 4, 2021 18:59
To: Li, Ji <liji at bnl.gov>
Cc: tech-talk at aps.anl.gov <tech-talk at aps.anl.gov>
Subject: Re: How to find out PVs preventing SSCAN from running?

P1NV is “PV BAD”. Something looks wrong.


Sent from my iPhone

On Aug 4, 2021, at 5:50 PM, Li, Ji <liji at bnl.gov> wrote:


Hi Mark,

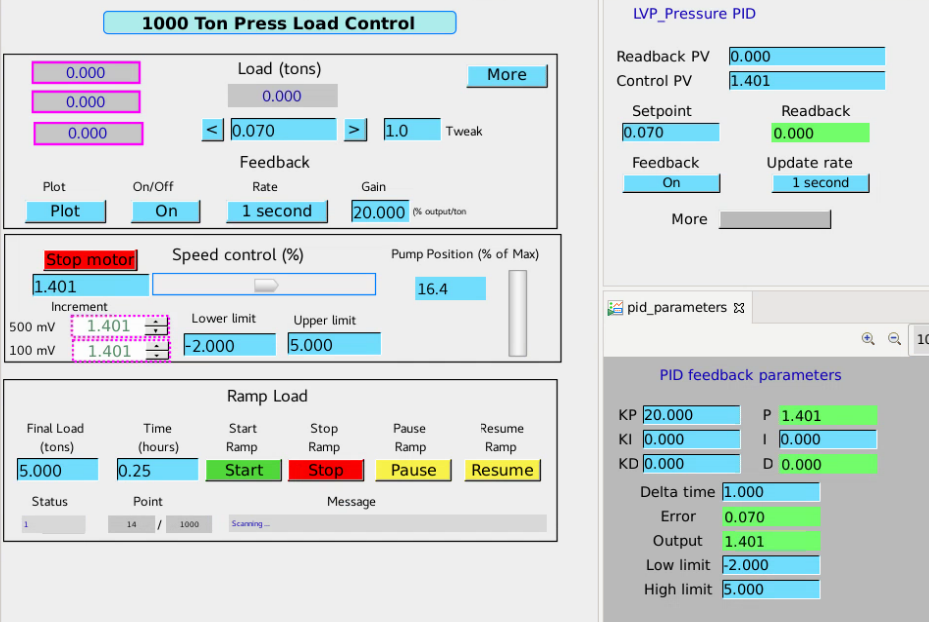

How do I access these screens? I did check the level 2 output of dbpr:

----------------------------------------------------------------------
epics> dbpr XF:28IDD-CTPress_RampScan 2
