Hi Oksana,



You can set up the plugin chain like this:



PIL->ROISTAT1->FileHDF1



In the detector Attributes.xml file remove all of the entries for the statistics.



In the ROISTAT1 you create a new attributes XML file that uses TYPE=PARAM to add the TOTAL and MEAN for each of the 4 ROIs defined in that plugin.  The ROISTAT1 plugin will now add its attributes to those added by the PIL detector driver and they will be written to the HDF5 file.



You no longer need to use the ROI1-4 or STATS1-4 plugins.



If you use the ROI and STATS plugins then you cannot use PARAM, you need to use EPICS_PV, which can have some latency as you have observed.



Mark







Hi Mark,



They are interested in total counts and max_count from their 4 ROIs. ROI_Start, and ROI_SIZE I can take from “EPICS_PV”.

I understand same things can be archived with ROIStats, which would be fine too.



Thank you

Oksana





> -----Original Message-----

> From: Mark Rivers <rivers at cars.uchicago.edu>

> Sent: Tuesday, February 23, 2021 11:21 AM

> To: Ivashkevych, Oksana <oksana at bnl.gov>

> Cc: tech-talk at aps.anl.gov

> Subject: Re: Saving hdf5 ADPilatus images along with ROI and stats data from

> the same frame

>

> Hi Oksana,

>

>

> type=PARAM can only be used for parameters generated by that plugin or

> driver, not by other plugins.

>

>

> However, you may be able to do what you want by changing your plugin

> chain.

>

>

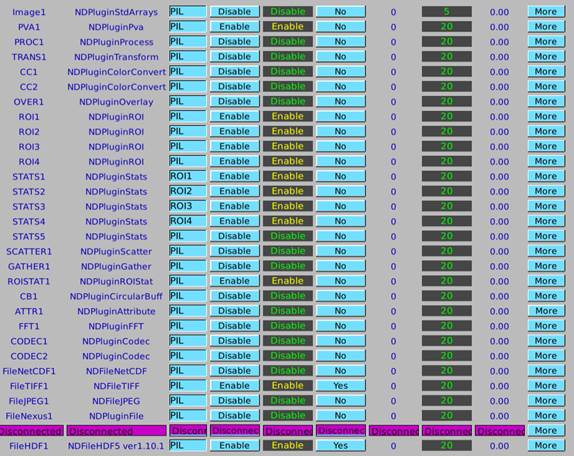

> - Can you please diagram you plugin chain?

>

> - Are you using both the NDPluginStats and NDPluginROIStats plugin?  If so, is

> this necessary?

>

> - Is the HDF5 file saving the entire image, or just a specific ROI?

>

> Mark

>

>

> ________________________________

> From: Tech-talk <tech-talk-bounces at aps.anl.gov> on behalf of Ivashkevych,

> Oksana via Tech-talk <tech-talk at aps.anl.gov>

> Sent: Tuesday, February 23, 2021 10:05 AM

> To: Tech-talk

> Subject: Saving hdf5 ADPilatus images along with ROI and stats data from the

> same frame

>

>

> Hello,

>

> I am trying to configure hdf5 plugin to save N images with 4 ROI data (start,

> size), and 4 Stats, connected to ROIs ( total , maxValue).

>

>

>

> I have created Attributes.xml file  following example from ADSimDetector.

> type="EPICS_PV" works, however type="PARAM" does not for parameters

> from areaDetector/ADCore/ADApp/pluginSrc/, but does work for params

> from areaDetector/ADCore/ADApp/ADSrc/.

>

>

>

> It looks like with "EPICS_PV" type statistics data come from the previous

> frame.

>

>

>

> I was wondering if there is something I am missing, or there are other ways

> to get the correct statistics into the hdf5 file. I have tried using Stats,

> ROIStats, and ROI plugins.

>

> The green attributes are correctly saved, others show NaN in hdf5 file.

>

>

>

> I have ADCore 3.6.0; ADPilatus 2.6.0

>

> Thank you

>

>

>

> Attributes.xml:

>

>

>

> <?xml version="1.0" standalone="no" ?>

>

> <!-- Attributes -->

>

> <Attributes

>

>     xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

>

>

> xsi:noNamespaceSchemaLocation="../../../../../ADCore/XML_schema/NDAtt

> ributes.xsd"

>

>     >

>

>     <Attribute name="DriverFileName"  type="PARAM"

> source="FULL_FILE_NAME"                       datatype="STRING"

> description="Driver file name"/>

>

>     <Attribute name="ROI0Size"      type="PARAM"    source="DIM0_SIZE"

> datatype="INT"     description="X size ROI 0"/>

>

>     <Attribute name="ROI0Mean"      type="PARAM"

> source="MEAN_VALUE"              datatype="DOUBLE"     description="Mean

> value ROI 0"/>

>

>     <Attribute name="ROI1Mean"      type="PARAM"

> source="MEAN_VALUE" addr="1"     datatype="DOUBLE"

> description="Mean value ROI 0"/>

>

>     <Attribute name="_ROI0Total"     type="PARAM"

> source="ROISTAT_TOTAL"                   datatype="DOUBLE"     description="Total

> counts ROI 0"/>

>

>     <Attribute name="_ROI1Total"     type="PARAM"

> source="ROISTAT_TOTAL"      addr="1"     datatype="DOUBLE"

> description="Total counts ROI 1"/>

>

>     <Attribute name="MaxSizeX"            type="PARAM"

> source="MAX_SIZE_X"                   datatype="INT"        description="Detector X

> size"/>

>

>     <Attribute name="MaxSizeY"            type="PARAM"

> source="MAX_SIZE_Y"                   datatype="INT"        description="Detector Y

> size"/>

>

>     <Attribute name="CameraModel"         type="PARAM"    source="MODEL"

> datatype="STRING"     description="Camera model"/>

>

>     <Attribute name="AttributesFileParam"  type="PARAM"

> source="ND_ATTRIBUTES_FILE"            datatype="STRING"

> description="Attributes file param"/>

>

>     <Attribute name="CameraManufacturer"  type="PARAM"

> source="MANUFACTURER"                 datatype="STRING"

> description="Camera manufacturer"/>

>

> </Attributes>

>

>

>
